 BUNDLED SENSORS TEMPERATURE

Sensor: DS18B20

Range: -55~125°C

Accuracy: +/- 0.5 °C

 Resolution: 12 bit (0.0625 ° C)

Sensor: Submersible

Housing: Waterproof steel

Power Input: 3.5~5.5VDC

Sensor Cable: 2 meters (max. 150m)

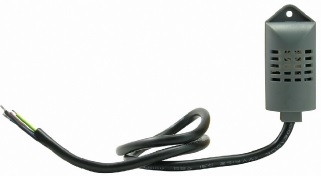

 BUNDLED SENSORS   HUMIDITY

Sensor: Ch1B

Range:  1~100% RH

Accuracy: +/- 5% RH

 Resolution: 12 bit

Sensor: Indoor Type

Housing: PVC

 Power Input: 3.5~5.5VDC

 Sensor Cable: 2 meters (max. 150m)





CHANNEL & SENSORS

 HTY4 7 HTY8 series are built with temperature, humidity sensors and numerous I/O for sensors.  Digital channels can be programmed as alarm, pulse sensors or Modbus integer registers.Analog Channels can be programmed as analog sensors, temperature, or Modbus floating point registers.

 POWER RATING

Power input: 10~VDC

 Power rating: Standby: 20Ma, Data Upload: 500mA

 NETWORK

Protocol:  UDP or TCP

GPRS: 2G or 3G Module

Ethernet: RJ45 Port 100/100M

 CHANNELS

AD Channel: High precision 12Bit AD converter

Signal type: 4~20Ma or 0~5VDC

Accuracy: 2.5/4096=0.00061 (0.061%)

 Alert: Programmable 1st high/low level, Programmable 2nd high/low level

 Digital Output: Max. DC24V @3A, AC120V @3A

Digital Input: Power Type or dry contact

 Pulse Input: Pulse Frequency, Time lapse ˃20ms, Max. 40 pulses per second, Max.99999999 pulses.
